Residential Elevators – Home Elevator By PVE®

HOME ELEVATOR – PVE37

Two-Passenger Home Elevator

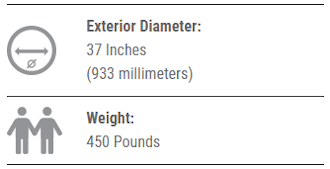

37″ Inch Exterior Diameter
450 lbs Capacity

Introduced to the elevator industry in 2002, the PVE37 is the first Pneumatic Vacuum Elevator model developed and distributed worldwide. As the ideal space saving solution, this Two­-Passenger Residential Elevator can fit virtually anywhere inside the home without the consuming footprint of traditional home elevators.

360° VISIBILITY QUICK INSTALLATION ECO-FRIENDLY TECHNOLOGY

REQUEST PRICING

Home Elevator – Two­ Passengers

The PVE37 has paved the way for the rest of the pneumatic vacuum elevators lineup.

The many features of this PVE37 home lift make it a great option if you want something more spacious than the PVE30, but do not have enough room or the need for the wheelchair-accessible PVE52.

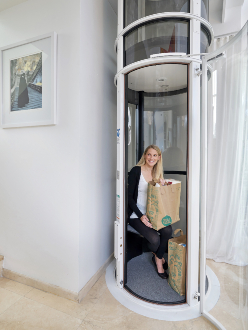

It measures 37 inches in outside diameter and 32 inches wide on the interior of the cabin.

This air-driven residential elevator can safely carry two adults, or 450 lbs, up to as many as five stops or 50 feet in total rise.

For an even more comfortable ride, you can opt to have a cabin seat installed for a single rider to sit on while being carried up to another floor.


Space-Saving Solution for Your Home

The compact PVE37 residential elevator is the perfect option for an existing residence as it does not take up much space, but still accommodates all of the desired applications of any residential elevator.

Simply resting on the existing ground floor, this space-saving home elevator can easily be installed in retro-fit or new construction projects.

Whether it is used for passengers, suitcases, pets, household items, or anything else, the PVE37 lift serves a number of functions without the consuming footprint and significant construction costs required of a traditional home elevator

Panoramic Design

With only one door opening available per level, the PVE37 offers in-line (same side) or 180° (opposite side) door openings with one door at each elevator landing.

Standing outside of the round elevator and looking at the door, the door opens from left to right (top right hinged). The door width opening is 20 ½ inches which will accommodate a passenger with a walker.

In addition, the PVE37 is the only Air-Driven Home Elevator that offers 90° Degree Door Configurations giving the homeowner more options for their residential elevator.

Keep in mind, for 90° Degree Door Configurations on the PVE37 model, all upper floor doors must be same side 90° degree configuration.


Absolute Safety

The PVE37 is nothing short of a technological marvel! This home elevator operates with five individual turbines, but these powerful turbines only use 5 kilowatts of electricity, making the PVE37 an environmentally friendly home elevator.

It runs off of a 30 amp/220 volt power supply, which is the same as most washer and dryers. If the power goes out in your home, you will not get stuck in the elevator.

The safety system is designed to automatically switch to a slow descent when the power goes out, and mechanical brakes engage if the elevator ever begins to free fall.

Minimal Maintenance

Another great benefit of this home elevator is that there is very minimal maintenance required.

The only scheduled maintenance per the ASME A17.7 certification is every five years or approximately 15,000 lifts on average. This is when the main seal needs to be replaced.

There is a significant cost savings over time if you are to compare this to the regular service required for a traditional residential elevator!


As you look more into it, you will no doubt find that the PVE37 offers everything you need in a residential elevator.


Two Passenger Residential Elevator


Standard Features
Home Elevator – PVE37

  • No pit, hoist way, or machine room required
  • 50 ft (15m) Total Rise Max
  • 35 ft/M travelling speed
  • Two to Five Stops
  • Self supporting structure
  • External cylinder diameter: 37 inches (933mm)
  • Internal cabin diameter: 32 inches (813mm)
  • Internal cabin height: 6’5” (77 inches/ 1956mm)
  • Entrance way opening: 21 inches (534mm)
  • Through Floor or Balcony Mount Landings
  • Power Supply: 30 AMP 220VAC
  • In-­line, 180° and 90° door openings*
  • Aluminum and polycarbonate cylinder structure
  • Automatic interior LED lighting and fan
  • Mechanical emergency safety brake system
  • One year limited manufacturer warranty
  • ASME A17.7 Certified

*All Upper Floor Doors Must Be Same Side Door Openings for 90° Door Configuration


OPTIONS

  • Split-Unit Feature

COLORS

  • Color Chart
  • Standard Black
  • Light Gray
  • White
  • Dark Gray
  • Taupe
  • Anodized Silver

UPGRADES & FEATURES

  • Solar Panel Package
  • Smart Home Integration
  • Cabin Folding Seat
  • Homing Feature
  • Remote Control Option
  • Phone
  • Cabin Key Lock
  • Earthquake Brackets

CUSTOMIZATIONS

  • Clear Polycarbonate Panels
  • Custom Right Hand Door

DOOR OPENING OPTIONS

  • Door Configurations
  • PVE37 Door Dimensions
  • Door Swing

DRAWINGS & SPECS

  • 2 Stop
  • 3 Stop
  • 4 Stop
  • 5 Stop
  • PVE37 Installation Drawings
  • Technical Specs
  • Installation Requirements
  • Electrical Specifications

Accessibility, Mobility and Style

PVE37 elevator installation is simpler than it would be with a traditional shaft-style elevator, and this model also doesn’t need as much space in which to operate. Because it is powered by air pressure, a pneumatic or vacuum elevator doesn’t require a machine room, pit or hoist way.


Like all elevator systems, the PVE37 requires regular maintenance — but it’s only after 15,000 rides, and the maintenance needed is simply to replace the main seal.



PVE37 Installation and Maintenance

The pneumatic elevator PVE37 is the perfect answer to your home mobility and accessibility issues. Whether you use a wheelchair to get around or not, this home elevator makes it easier to go from floor to floor safely. It’s also surprisingly stylish, adding to the look of your home even as it adds accessibility.


Why stay confined to one level of your home when your mobility declines? With its futuristic but elegant appearance and proven track record, the PVE37 is an excellent solution.

This home elevator has been on the market since 2002, with a high standard of reliability and quality. This model of home elevator can make between 2 to 5 stops and has a proven track record of safety.



Mobility Made Easier

The pneumatic elevator PVE37 is compact, attractive, and helps save space within your home while making it more accessible. Installing the PVE37 is fast and easy, especially when you choose a well-established elevator company like Pneumatic Vacuum Elevators, LLC to handle the installation for you.

We do our best to install your elevator quickly and minimize the disruption to your daily life.
