Discover Luxury
ATECO
Platform
A refined home lift solution designed to bring smooth movement, elegant styling, and easy accessibility to modern residential spaces.
Luxury in Every Detail
Compact, safe, customizable, and suitable for homes, villas, and private residential projects.
Home Lift Solution
Comfortable access without compromising your interior design.
The ATECO Platform home lift is an open-sided platform enclosed within a metallic shaft, designed to fit smoothly into different home layouts. It can be installed in small spaces while maintaining comfort, safety, and ease of access.
With clean lines, customizable finishes, and elegant details, it becomes a practical and attractive addition to your home.
“The perfect final touch to give your home extra comfort.”
Features
Designed for smooth living
ATECO Platform combines simple operation, stylish appearance, compact installation, and dependable safety features.
Smooth Ride
Soft start and stop technology provides a calm, quiet, and comfortable ride between floors.
Design Your Lift
Choose from platform size, colors, walls, floor, doors, and details to match your home surroundings.
Easy to Install
Made to fit into small spaces with minimal construction work and normal mains electricity.
Small & Compact
The shaft can be as compact as 900 x 940 mm, while the smallest platform needs only 50 mm pit.
Control Panel
A high-quality illuminated control panel with clear symbols, backlight, and diagnostic display.
Safety Features
Includes emergency stop, alarm button, battery backup, emergency lowering, and communication features.

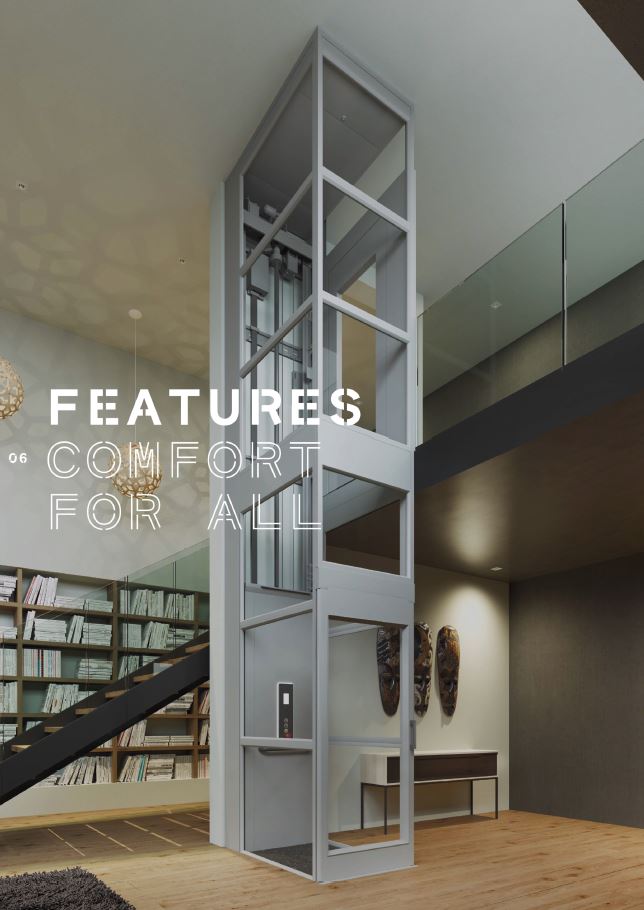

Comfort For All
Practical access with elegant performance.
ATECO Platform is suitable for daily use and helps make multi-level homes more comfortable, especially when accessibility is a priority.
Easy Maintenance
Automatic lubrication keeps the lift mechanism running smoothly and helps preserve performance.
Battery Backup
In case of power failure, the backup system brings the lift safely down to a lower floor.
Safe Operation
Safety edges and controls help stop the lift in case of obstruction.
European Standards
Designed to comply with relevant European safety standards.
Options
Platform types
Select the configuration that best fits your residential project and accessibility requirements.
Console Wall
The most compact version, with a full-height console wall illuminated by an LED strip. Safety edges around the floor stop the lift in case of obstruction.
Suitable for residential use only.
Console Wall with Ceiling
A larger version with a full-height console wall and ceiling with three LED spotlights. The open sides include platform fitted photocells for safety.
Suitable for wheelchair users and accessibility standards.
Custom Design
Design your lift to match your home.
ATECO Platform can be customized to reflect your interior style. Doors can be painted in any color, and several design options are available to coordinate with your surroundings.
Landing Doors

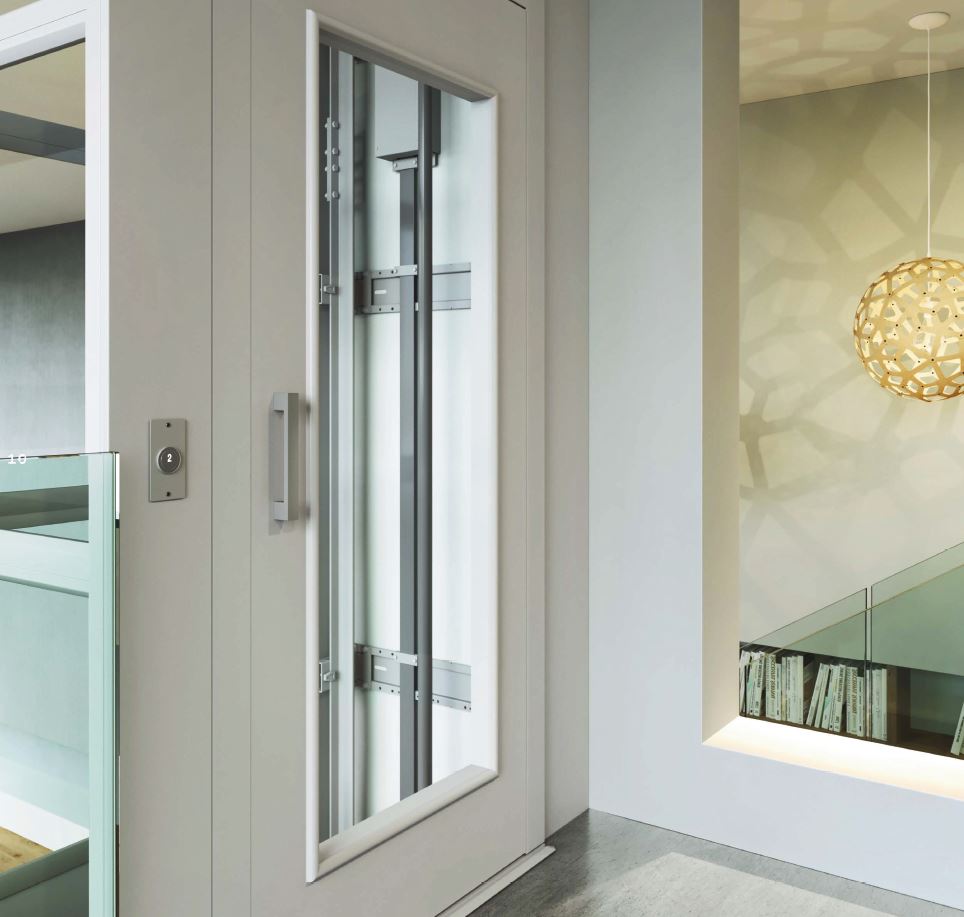

ATECO Platform can have one or two landing doors per floor, depending on the platform size. Doors are available with either a panoramic glass panel or a plain steel panel.
Fully automatic door openers are also available as an option.
Technical Specification
Luxury in every detail
Available in multiple platform sizes with reliable drive technology and a compact installation footprint.
ATECO Platform
- 800 x 580 mm
- 800 x 845 mm
- 800 x 1100 mm
ATECO
Platform Pro
- 1400 x 900 mm
- 1400 x 1000 mm
- 1400 x 1100 mm
| Technical Compliance | Machinery Directive 2006/42/EC |
|---|---|
| Drive System | Screw/nut system |
| Maximum Speed | 0.15 m/s |
| Travel Height | 900–12000 mm |
| Number of Stops | Maximum 6 stops per lift |
| Landing Doors | 1 door per floor / Pro: 2 doors per floor |
| Pit | 50 mm pit. If a pit is not possible, the lift can be used with a ramp. |
| Console Wall Height | 2200 mm |
| Shaft Top Height | 2430 mm, elongation possible |
| Platform Controls | Hold to run; floor button must be kept pressed during travel |
| Landing Controls | One touch call |
| Application | Indoor |
| Emergency Lowering | Battery-operated emergency lowering with battery guard |
| Control Voltage | 24V |
| Motor | 1.5kW / Pro: 2.2kW |
| Power Supply | 1-phase 230V 50/60Hz 16A |
| Maximum Power | 3kW / Pro: 4.5kW |
| Rated Load | 250kg / Pro: 325–400kg |
Bring luxury access to your home
Contact ATECO Corporation today to discuss your project, choose your platform type, and request a quotation for your home lift solution.
