Your Smart Lift Solution
ATECO

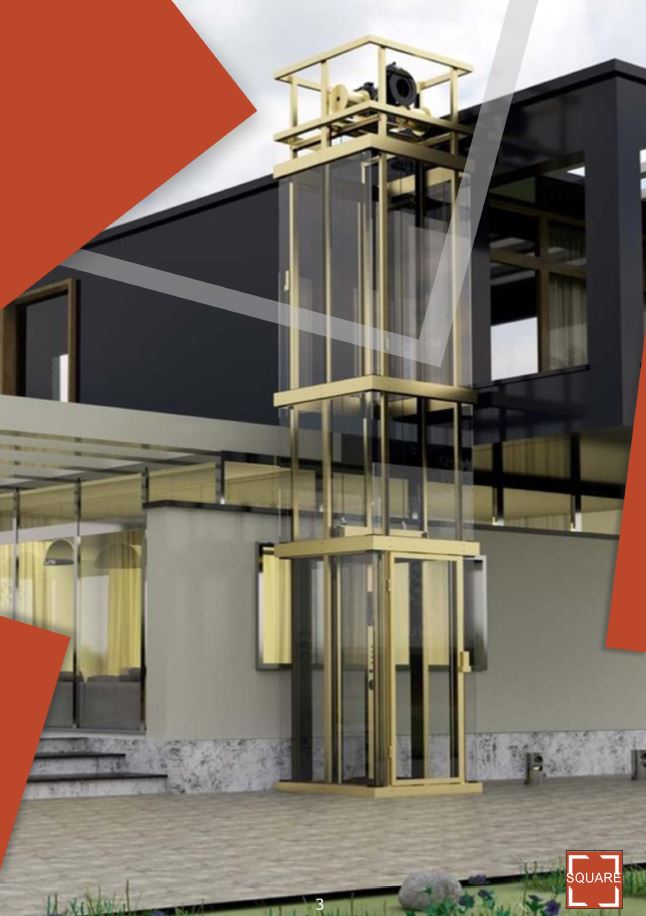

Square Lift
Add value to your property and lift your lifestyle with ATECO Square, a stylish home lift solution designed for modern villas, homes, and premium properties.
Smart Choice, Long-Term Value
ATECO Square is designed to make your property more comfortable, accessible, and valuable.
About Home Lift
A smart home lift solution for modern living.
ATECO Square brings together luxury styling, practical access, and reliable elevator technology. It is built for people who want a convenient, safe, and attractive way to move between floors.
The lift is suitable for new homes, existing villas, commercial interiors, and buildings where smart use of space is important.
It is not just a luxury option; it is a smart choice and long-term thinking.
What Makes Us Unique?
Engineered for easy installation, clear views, and quiet movement.
Smart Civil Work
No pit, no hydraulic system, no vacuum system, and no supporting wall required. Just plug it into a domestic electrical socket and start moving.
Minimal Maintenance
Electrical self-supporting elevator with no oil, vacuum systems, or counterweights, helping reduce maintenance time and cost.
Plug & Play
The elevator comes as a semi-assembled unit. Install, plug, and play with no surprises.
Self-Supported Structure
ATECO Square is a stand-alone elevator that does not require supporting beams, columns, or walls.
Panoramic View
The sightseeing capsule allows passengers to stay visually connected with the surrounding area while moving.
Green Elevator
Eco-friendly materials, low assembly requirements, and lower energy consumption compared to traditional elevator systems.
Trustworthy home lift technology.
ATECO Square is designed with safety at the heart of every component. The system includes certified safety features and meets required safety and performance standards.
General Specifications
- Single entrance
- Opposite entrance
- Three-way entrance is not available
- Multiple door access available
The door access can be customized according to the building situation, allowing entrances and exits from different sides on each floor.
Photosell Sensors
Stops the lift immediately when passengers or objects approach the exit area.
Mechanical Guide Rails Brakes
Automatic built-in braking protection in case of abnormal speed or cable failure.
Overload Sensor
The elevator will not move when overloaded and will show a signal on the control panel.
Limit & Emergency Stop
Ensures the car stops at final destinations or in emergency situations.
UPS with Support
Battery backup operates automatically if the regular power source fails or voltage drops.
Magnetic Lock Switch
Ensures the elevator door opens only when the car is available and not in use.
Customization
Flexible for your building today and tomorrow.
Adaptability
Its technological simplicity helps make full use of your property’s space and elevation without major reinforcement or structural changes.
Flexibility
A G+1 elevator can be converted into G+2 or G+3 in the future, and the whole lift can be dismantled and relocated if needed.
Return to Home
The timed electronic system lets you choose where the lift should land when it is not in use.
Color Options
Choose the look and feel that suits your building.
ATECO Square offers a wide range of color variants, including standard ESP painting and stainless steel options.
Ral 9001 Cream
Ral 1004 Golden Yellow
Ral 5002 Ultramarine Blue
Ral 9004 Signal Black
Ral 9003 Signal White
Ral 8012 Red Brown
Ral 9007 Grey Aluminum
Ral 8003 Clay Brown
Gold Steel
Black Steel
Stainless
Rose Steel
Technical Specification
Detailed specifications
| Maximum Travel | 14 MT |
|---|---|
| Maximum Levels | 5 Stops / 17.1 MT |
| Pit Depth | 120 mm - No pit with optional short ramp |
| Installation Place | Inside - Outside |
| Drive Train | Winding Drum Machine with Encoder, made in Italy |
| Machine Control | Preprogrammed variable frequency drive |
| Rope | 8 mm standard TOP quality, German quality available on request |
| Transmission | Ultra-low vibration, 3-stage, right-angle, helical-bevel drive |
| Noise Level | 54db ventilator OFF / 56db ventilator ON |
| Cabin Cladding | Clear glass 4x4 mm laminated |
| Cabin Ceiling | LED spot light / spot light |
| Cabin Operating Panel | Intercom, alarm, emergency stop button |
| Overload Indication | Built in on COP |
| Cabin Flooring | PVC / Wood |
| Shaft Construction | Profile |
| Structure Cladding Glass | Clear glass 4x4 mm laminated |
| Landing Door Height | 2100 mm |
| Door Type | Swing manual door and swing semi-automatic choice |
| Door Interlocks | Italian brand, made in Italy |
We Rise Together
Bring a smart panoramic lift solution to your property.
Contact ATECO Corporation today to discuss your project, select your circular lift configuration, and request a quotation.
