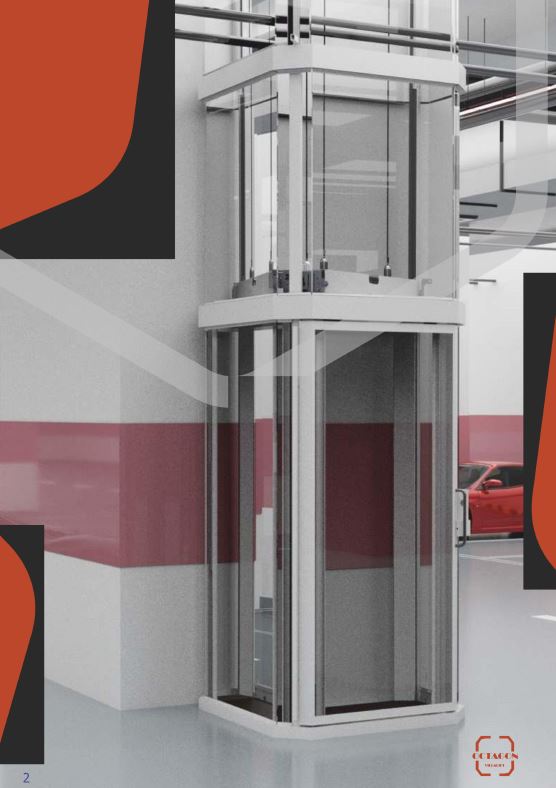

ATECO Octagon
Your Smart
Lift Solution
Add value to your property and lift your lifestyle with ATECO Octagon, a panoramic home lift designed for elegant spaces, flexible installation, and smooth daily use.
ABOUT HOME LIFT
A smart choice for modern homes and properties.
ATECO Octagon is created for homes, villas, stores, hotels, and properties that need a stylish and practical lift solution. It helps improve accessibility, comfort, and property value while maintaining a clean panoramic design.
The lift concept is not only a luxury option. It is a long-term investment that can make daily life easier, especially when moving between floors, carrying items, or supporting family members who need safer access.
Why ATECO Octagon?
It combines smart civil work, plug-and-play installation, panoramic visibility, low maintenance, eco-friendly materials, and a self-supported structure that can be installed in different property layouts.
What Makes Us Unique?
Engineered for easy installation and elegant movement.
The brochure highlights a set of practical features that make ATECO Octagon suitable for both new and existing buildings.
Smart Civil Work
No supporting wall, pit, hydraulics, or vacuum system required. It can be connected to a domestic electrical socket.
Minimal Maintenance
An electrical self-supporting elevator with no oil, vacuum systems, or counterweights, reducing service needs and extra costs.
Plug & Play
Comes as a semi-assembled unit. Install, plug, and use with fewer surprises during the installation process.
Self-Supported Structure
A stand-alone elevator that does not require supporting beams, columns, or walls. All you need is the space.
Panoramic View
The glass sightseeing capsule allows passengers to stay connected with the surrounding area while moving.
Green & Quiet
Eco-friendly raw materials, lower energy use, and a smooth moving system with low noise performance.
Place full trust in HOME Lift technology.
ATECO Octagon is designed with safety at the heart of every component and is tested to meet the required safety and performance standards of the Machinery Directive 2006/42/EC.
Photosell Sensors
Light sensors force the lift to stop immediately when passengers or obstacles are detected.
Mechanical Guide Rails Brakes
Automatic braking locks in place if the elevator moves faster than the allowed amount.
Overload Sensor
When overloaded, the elevator will not move and gives a sign on the cabin operating panel.
Limit & Emergency Stop
Switches help stop the car at final destinations or in emergency cases.
Machine Brake Hand
Allows a technician to free the car and descend it to the closest lower floor in emergency cases.
Magnetic Lock Switch
Ensures the elevator door opens only when the car is available and the lift is not in use.
Overspeed Governor
Designed to stop the lift if it runs beyond the prescribed speed.
Rescuing UPS System
Battery backup power turns on automatically when regular power fails or voltage drops.
Customization
Flexible for your building today and tomorrow.
Adaptability
The technological simplicity helps the lift make full use of your property space and elevation without major structural changes.
Flexibility
A G+1 elevator can be converted into G+2 or G+3 in the future. It can also be dismantled and relocated if needed.
Return to Home
The timed electronic system allows the lift to return to a selected floor when it is not in use.
Color Options
Choose the look and feel that suits your décor.
Standard ESP painting options and stainless steel finishes are available for indoor and outdoor use.
Ral 9001 Cream
Ral 1004 Golden Yellow
Ral 5002 Ultramarine Blue
Ral 9004 Signal Black
Ral 9003 Signal White
Ral 8012 Red Brown
Ral 9007 Grey Aluminum
Ral 8003 Clay Brown
Gold Steel
Black Steel
Stainless
Rose Steel
General Specifications
- Single entrance
- Opposite entrance
- Three-way entrance
- Multiple door access available
The door access can be customized according to the building situation, allowing entrances and exits from different sides on each floor.
| Maximum Travel | 14 MT |
|---|---|
| Maximum Levels | 5 Stops / 17.1 MT |
| Pit Depth | 120 mm - No pit with optional short ramp |
| Installation Place | Inside - Outside |
| Drive Train | Winding Drum Machine with Encoder, made in Italy |
| Machine Control | Preprogrammed variable frequency drive |
| Rope | 8 mm standard TOP quality, German quality available on request |
| Transmission | Ultra-low vibration, 3-stage, right-angle, helical-bevel drive |
| Noise Level | 54db ventilator OFF / 56db ventilator ON |
| Cabin Cladding | Clear glass 4x4mm laminated |
| Cabin Ceiling | LED spot light / spot light |
| Cabin Operating Panel | Intercom, alarm, emergency stop button |
| Cabin Flooring | PVC / Wood |
| Shaft Construction | Profil |
| Structure Cladding Glass | Clear glass 4x4mm laminated |
| Landing Door Height | 2100 mm |
| Door Type | Swing manual door and swing semi-automatic choice |
| Door Interlocks | Italian brand, made in Italy |
We Rise Together
Bring a smart panoramic lift solution to your property.
Contact ATECO Corporation today to discuss your project, select your circular lift configuration, and request a quotation.
